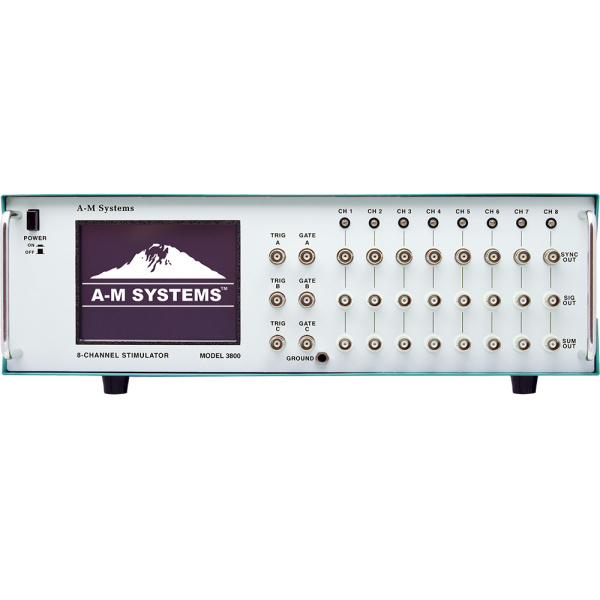

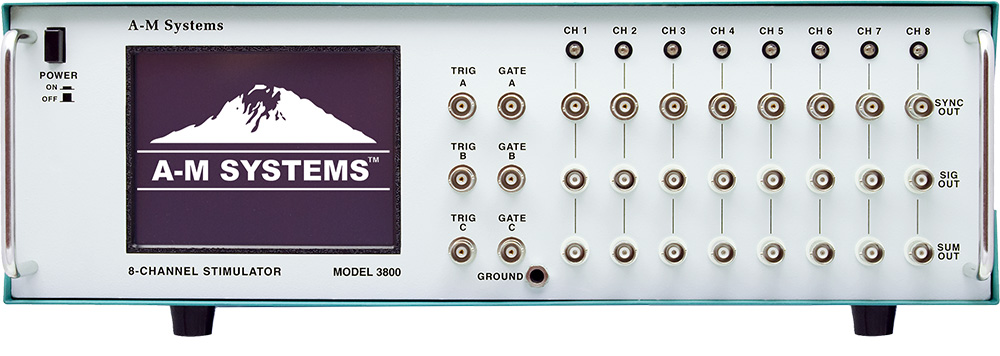

Model 3800 MultiStim: 8-Channel Stimulator
8 CHANNELS. TOUCH SCREEN. COMPUTER CONTROL
| Timing Rage |
1 µs to 250 Hours |
| Minimum Pulse Duration |
1 µs monophasic; 2 µs biphasic |
| Minimum Pulse Interval |
3 µs |
| Output |
± 10 V with 1mV resolution |
| Timing Accuracy |
Better than 0.02% |
| With Optional SIU |
± 60 V @ 10 mA, with selectable AC coupling; 500 kHz bandwidth |
| Built-in Stimulus Protocols |
Monophasic, Biphasic, Paired Pulse, and Stepped pulse |
| Triggering |
8 Channel-specific rear panel BNCs; 3 non-specific front panel BNCs that can be assigned to any single or set of channels; Interchannel triggering |
| Gating |
3 non-specific front panel BNCs that can be assigned to any single or set of channels; Interchannel gating |
| Control |
Via Front Panel touch screen or free PC compatible software application. Software programming guide is available (Serial communication over USB). |
