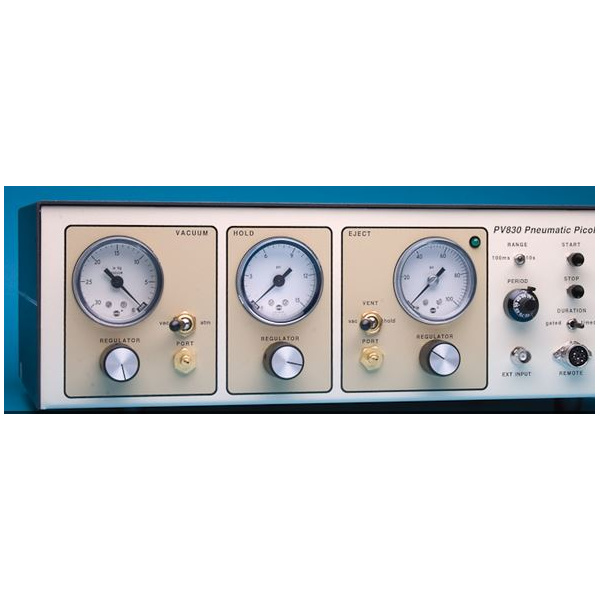

PV830 Pneumatic PicoPump with vacuum
Designed to simplify intracellular injection and a variety of other microinjection tasks, WPIs PicoPumps use carefully regulated air pressures for securing cells and injecting them with fluid
- Regulated Hold, Ejection and Vacuum Pressure
- Carefully regulated air pressures for securing cells and injecting them with fluid
- Pressure Input: 0-150 psi
- Pressure Output: 0.3-90 psi
PRESSURE
| Pressure Input |
0-150 PSI |
| Pressure Output |
0.3-90 PSI |
| Lowest Regulated Pressure |
12" water |
| Regulator Accuracy |
0.1% (20-turn dial) |
| Regulator Repeatability |
0.05 PSI (both hold and eject pressures) |
| Gauge Accuracy |
3% at full scale (both hold and eject pressures) |
| Input Connector |
Quick Connect (1/4" OD tubing) |
| Output Connector |
Barbed (1/16" ID tubing) |
| Control |
Solenid |
VACUUM
| Vacuum Input |
0 - 30.0" Hg |
| Vacuum Output |
0.2 - 29.9" Hg |
| Lowest Regulated Vacuum |
3" water |
| Regulator Accuracy |
0.1% (20-turn dial) |
| Regulator Repeatability |
0.03" Hg |
| Gauge Accuracy |
3% at full scale |
| Input Connector |
Quick Connect (1/4" OD tubing) |
| Output Connector |
Barbed (1/16" ID tubing) |
| Control |
Manual |
| Vent |
Atmosphere |
CONNECTIONS INCLUDED
| Input Kit |
10' nylon tubing (0.25" OD, 1000 PSI), one 1/2" female NPT adapter |
| Output Kit |
Two PicoNozzle |
PHYSICAL SPECS
| Power |
95-135V or 220 - 240V, 50 / 60Hz |
| Dimensions |
17 x 5.25 x 9.5" (43 x 13 x 24 cm) |
| Shipping Weight |
14 lb. (6.3kg) |
