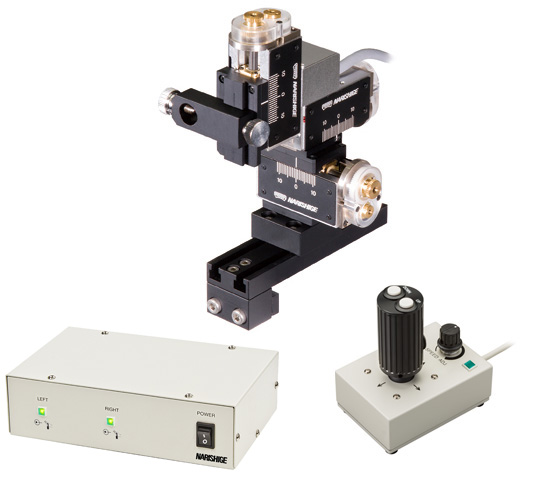

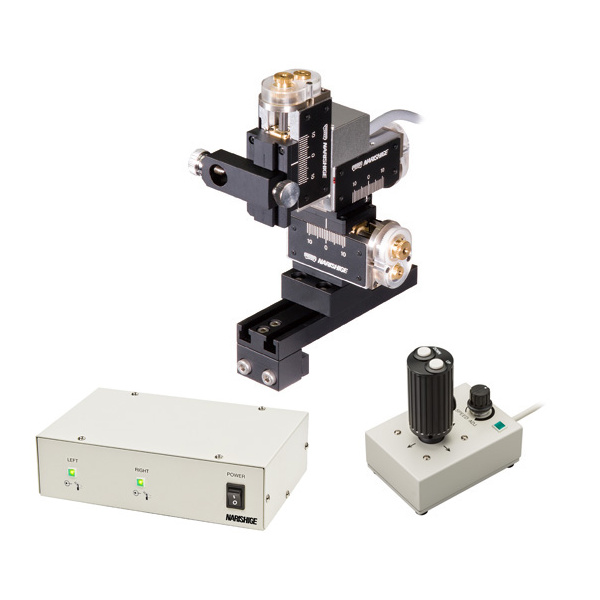

MM-94 for right and left-side
MM-94B is an add-on type manipulator for left-side use of MM-94, that is used with a control unit of MM-94. For the full setup with right and left-side, MM-94 and MM-94B share one control unit
* MM-94B is left-sided model
Control Unit
 |
Since MM-94B does not include control unit, MM-94 is required to use MM-94B
For left-side use without control unit, please contact us
|
Specification
| Accessories included |
Hex Wrench |
| Movement range |
Coarse |
X22 mm, Y22 mm, Z22 mm |
| Driving speed |
X/Y axis |
1.4 mm/s (with use of high-speed button)
Maximum speed 0.7 mm/s (with use of speed adjusting knob)
Minimum speed 0.1 mm/s (with use of speed adjusting knob) |
| Z axis |
2.8 mm/s (with use of high-speed button)
Maximum speed 1.4 mm/s (with use of speed adjusting knob)
Minimum speed 0.2 mm/s (with use of speed adjusting knob) |
| Working voltage |
Refer to control unit of the MM-94 |
| Power consumpution |
Refer to control unit of the MM-94 |
| Dimensions/Weight |
Controller |
W70 × D100 × H120 mm, 530 g, Connecting cable (1.2 m) |
| Drive unit |
W85 × D112 × H144 mm, 591 g, Connecting cable (1.2 m) |
