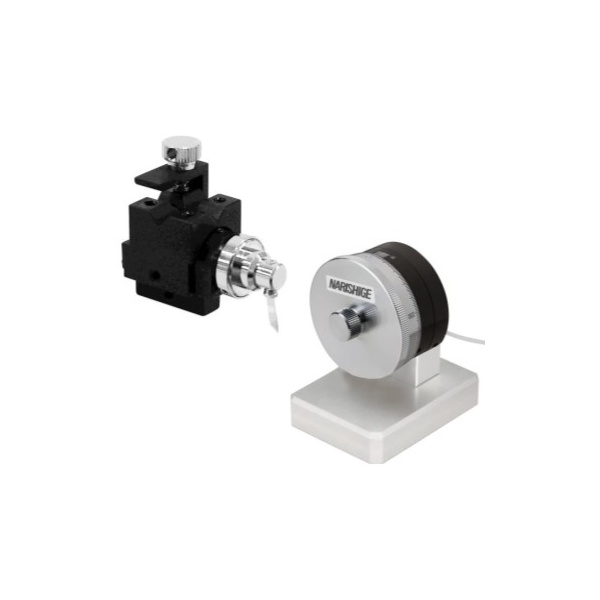

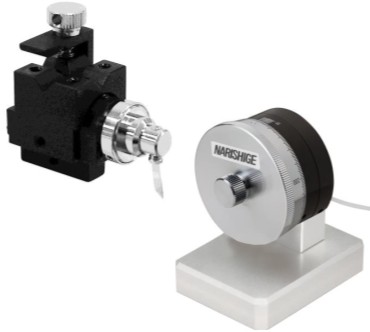

The MHW-4-1 is suitable for experiments in electro-physiological recording that require to avoid drift occurrence. By using with the attachment P-11 (sold separately), it enables use with various manipulators combined at the holder fixing block. This allows vibration-free fine-drive control at the same angle as the electrode, and by rotating the control knob located away from the drive unit, it can be easily operated with fingertips
Holder fixing block
Set-up examples

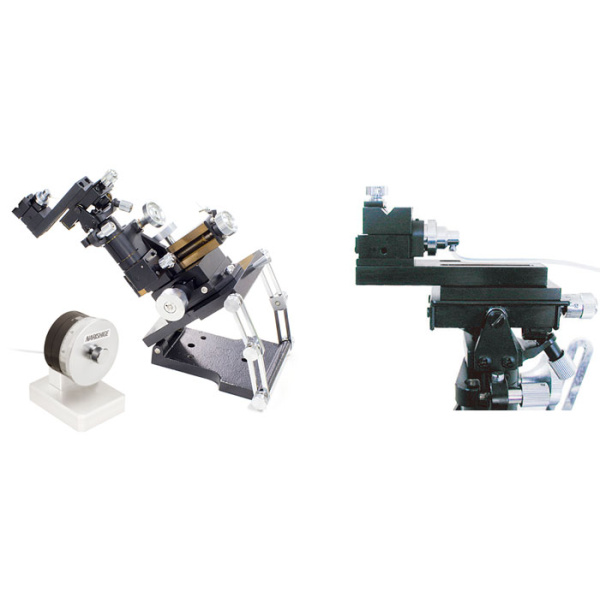

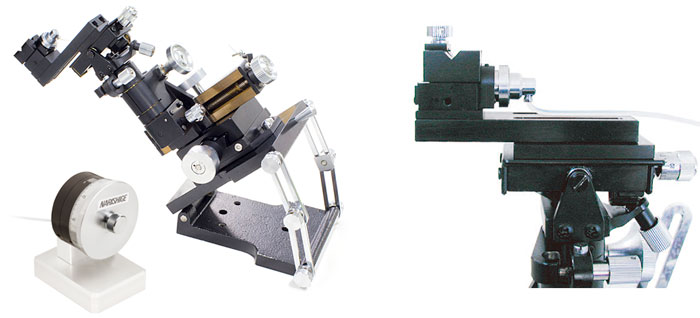

Set-up image of MHW-4-1, P-11, and MP-2

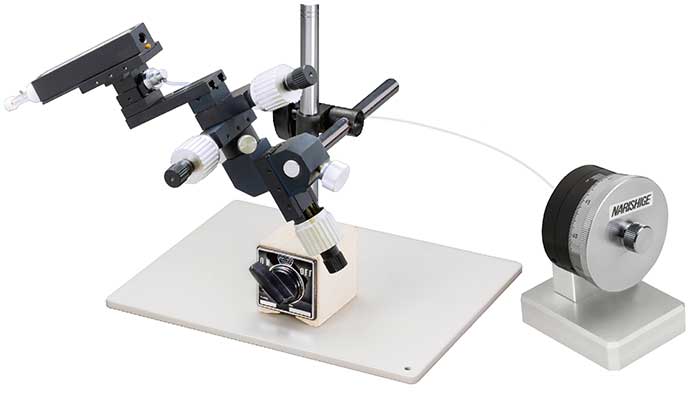

Set-up image of headstage (sold separately), AP-13-3, MHW-4-1, P-11, UMM-3FC, GJ-8 and IP

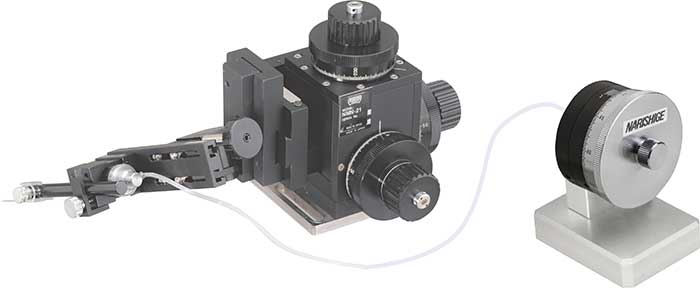

Set-up image of MHW-4-1, P-11 and NMN-21

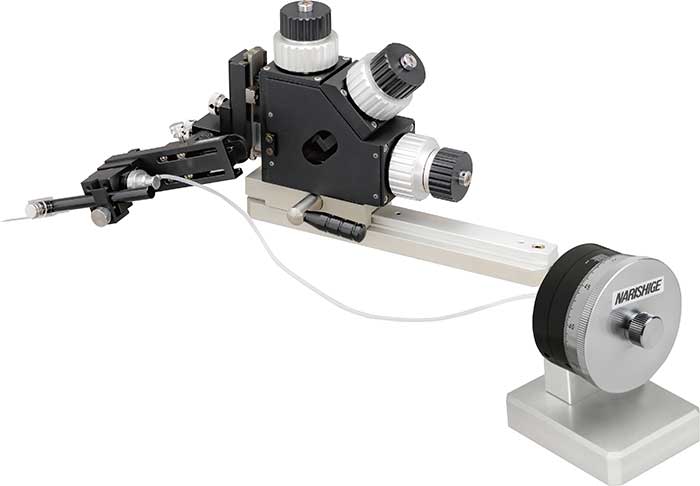

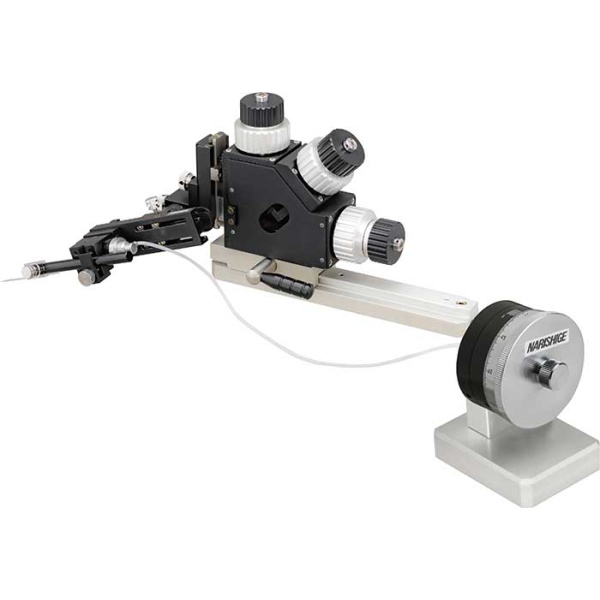

Set-up image of MHW-4-1, P-11, NMN-25 and NMN-25A
Specification
| Movement range |
Fine |
10mm
Full rotation of knob 250 µm
Minimum graduation 1 µm |
| Dimensions / Weight |
Control unit |
W65 × D88 × H93 mm, 630 g |
| Drive unit |
W42 × D28 × H41 mm, 60 g |
| Tube length |
0.9 m |
* Minimal drift type by 5:1 cartridge system (MHW-4) is also available
