Smooth drive and stable controls developed through outstanding technologies

Long cherished by many pioneering users, this manual micromanipulator features a smooth drive and stable controls which are derived from advanced and successful technologies. One-axis fine movement in the same direction as the microelectrode makes it possible to approach a specimen with care and caution. The three-dimensional coarse movement handle operates via a rack & pinion mechanism, enabling the microelectrode to be placed near the specimen quickly. Handles on both sides in the X- and Z-axis make this equipment suitable for both left- and right-handed operators, and tension adjustment is also available to prevent the handle from dropping under its own weight

* Use GJ-8 magnetic stand (sold separately) to attach this model

* Using MO-10 (One-axis oil hydraulic micromanipulator, sold separately) in place of H-13 enables remote controlled fine movement in the same direction as the electrode

* Using MDO-84 (One-axis oil hydraulic-motorized hybrid micromanipulator, sold separately) in place of H-13 enables fine movement in the same direction as the electrode in a more precise manner

* Attachment to the side of microscope stage is possible by using P-1B height adjustment plate (sold separately) and a suitable mounting adaptor

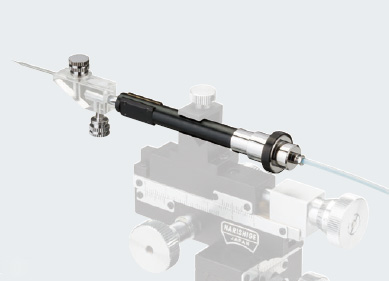

Setting example

MM-3 + MO-10 mounting example

Specification

System Diagram
