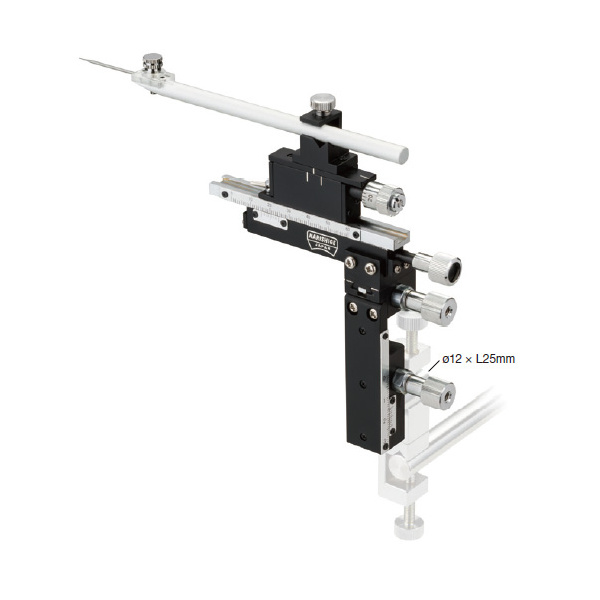

Ultra-thin manipulator body enables multiple recording

To enable recording from multiple microelectrodes, the body of this model is made as thin as possible, with all the handles positioned in a single direction. Use of the X-4 Rotating X-Blocks (sold separately), makes it possible to place many microelectrodes close together without taking up too much space. It is of course possible to mount a one-axis fine movement unit on the X-axis for a more careful approach to the specimen

* Use X-4 X-blocks and GJ-8 magnetic stand (both sold separately) to attach this model

* Using MO-10 (One-axis oil hydraulic micromanipulator, sold separately) in place of H-13 enables remote controlled fine movement in the same direction as the electrode

* Using MDO-84 (One-axis oil hydraulic-motorized hybrid micromanipulator, sold separately) in place of H-13 enables fine movement in the same direction as the electrode in a more precise manner

Setting example

M-3333 Setting Example

Specification

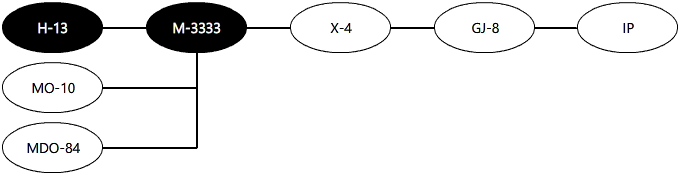

System Diagram
