Cylinder Capping Equipment
Cylinder Capping Equipmentnl 4009 x - 001nl 4009x - 002nl 4009 x - 008nl 4009 x - 003nl 4009 x - 010nl 4009 x - 005nl 4009 x - 006nl 4009 x - 007nl 7014 x - 010

Cylinder Capping Equipment NL 4009 X /

Standard: ASTM C617/C31/C192, AASHTO T23/T126, EN12390-3,BS 1881-120

Sample Preparation for the Compression Test

Used to assure plane end surfaces perpendicular to the axis of the cylinder during the capping

Technical Specifications:

Model Number   Parts Description   Approx. Weight

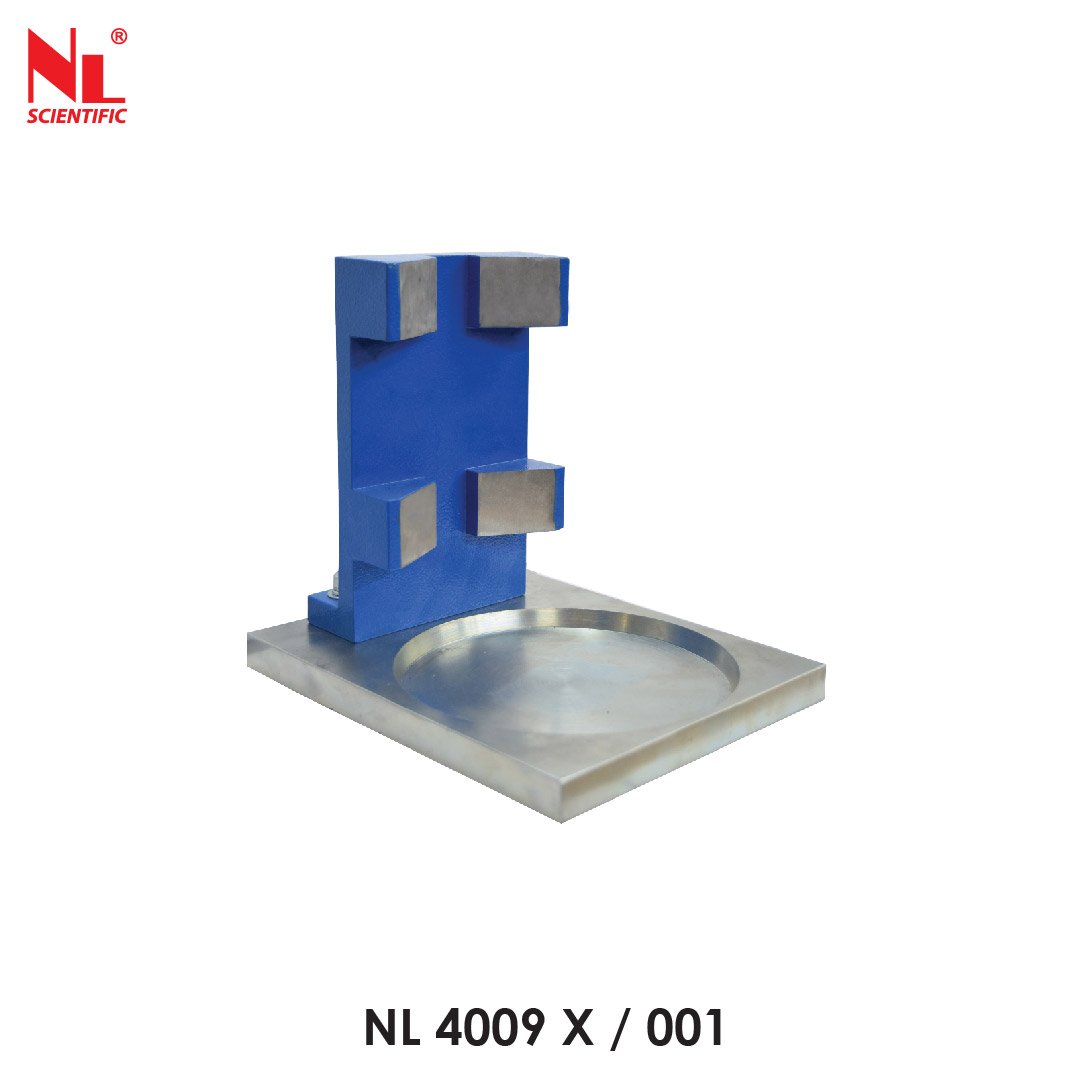

 NL 4009 X / 001  Vertical Cylinder Capper Ø 150 x 300 mm
& Ø 6” x 12” Sample		  5.3 kg
 NL 4009 X / 002  Vertical Cylinder Capper For Ø 100 x 200 mm Sample  3.2 kg
 NL 4009 X / 008  Multiple Size Cylinder Capper  15 kg

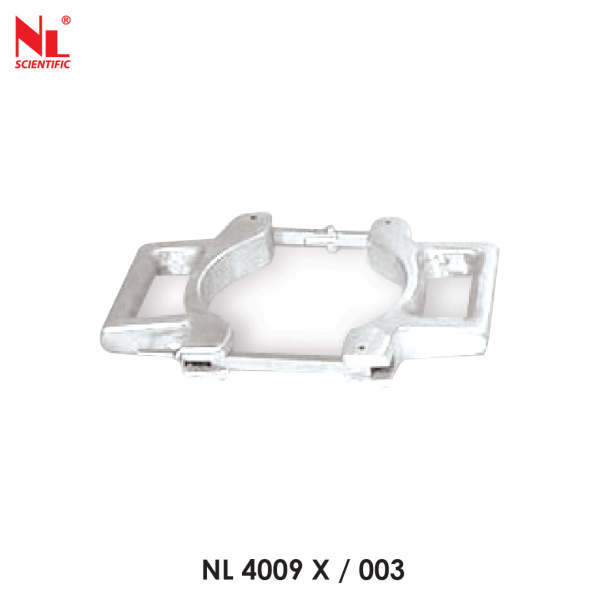

 NL 4009 X / 003  Cylinder Carrier Ø 150 mm & Ø 6”  0.6 kg
 NL 4009 X / 008  Melting Pot 7 Litres - 220~240 V, 1 ph, 1500 W  3.4 kg
 NL 4009 X / 005  Budget Melting Pot  3.5 kg

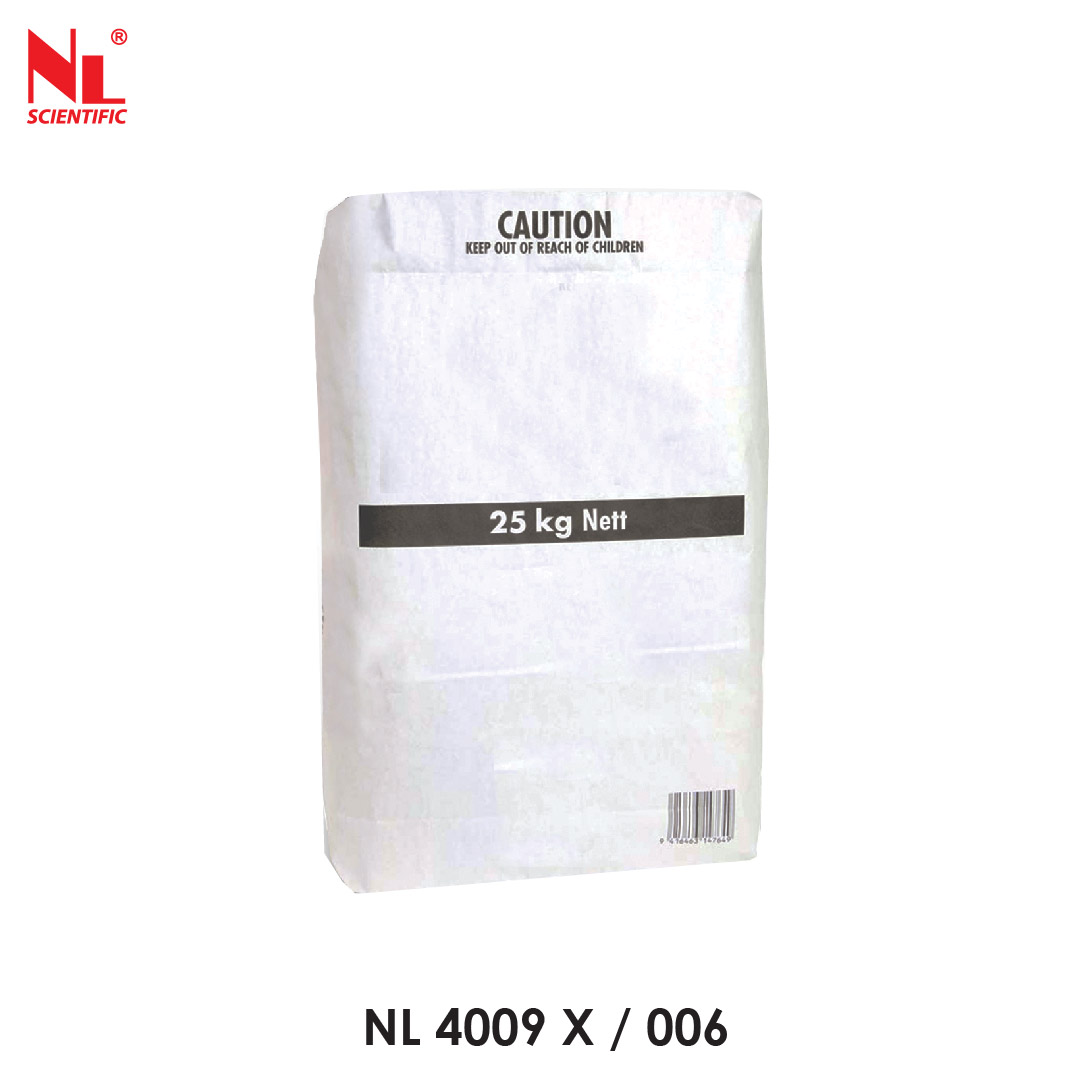

 NL 4009 X / 006  Capping Compound  25 kg/pack

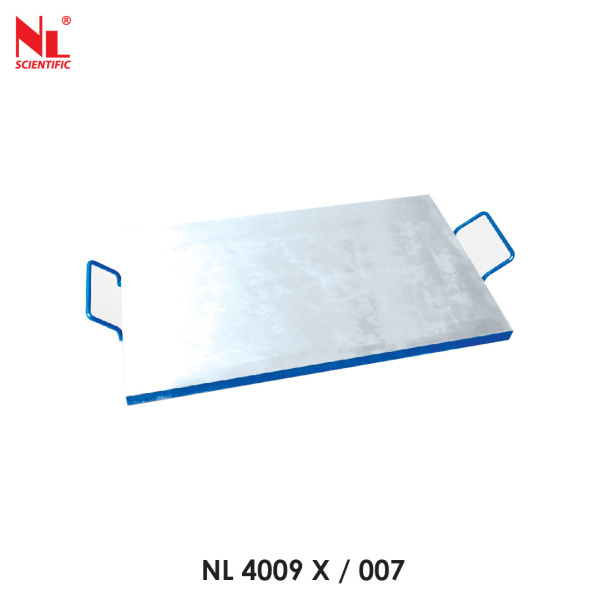

 NL 4009 X / 007  Steel Capping Plate 20 x 300 x 500 mm  24 kg

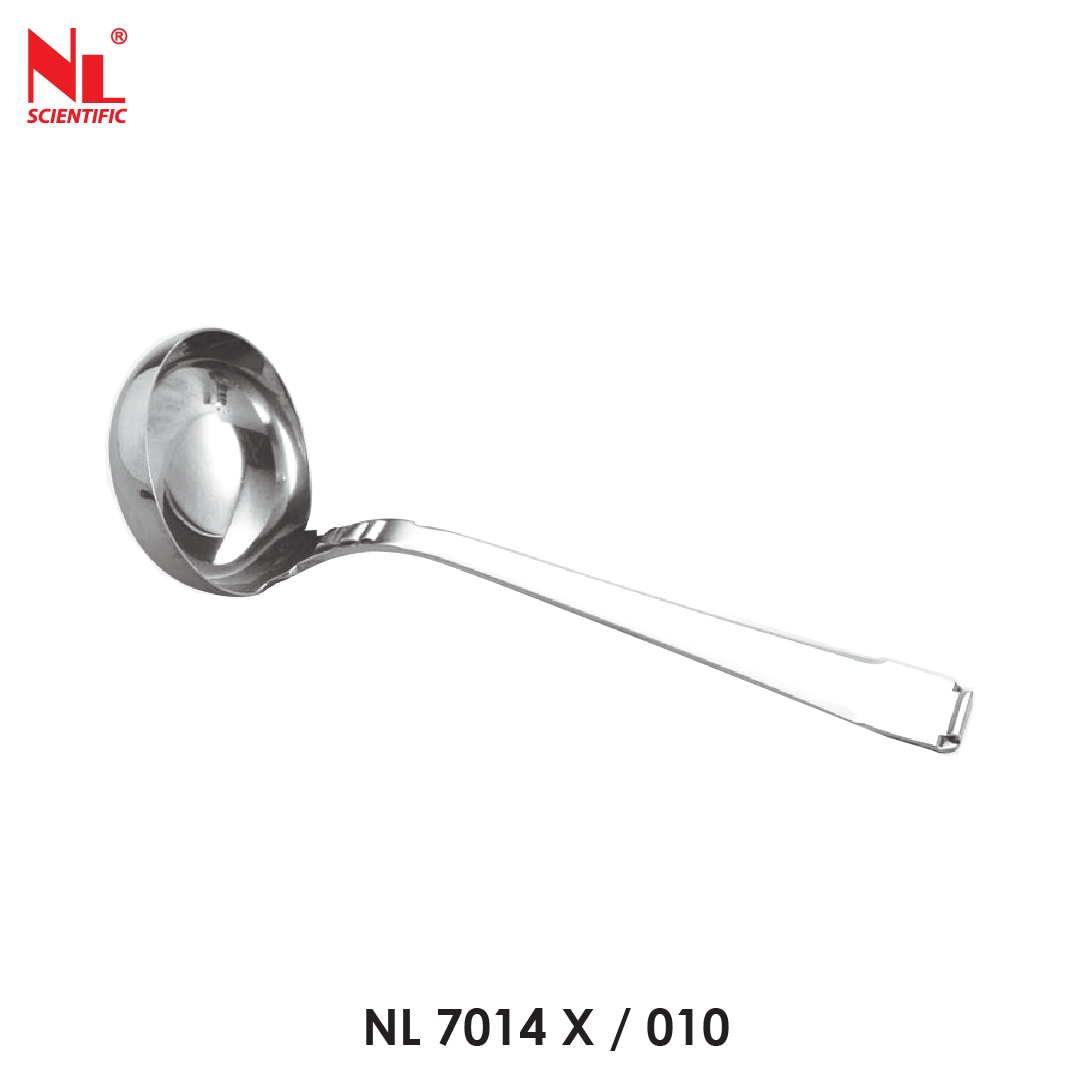

 NL 7014 X / 010  Ladle 13” Length   0.2 kg
