Numerous functions in addition to three-dimensional movement

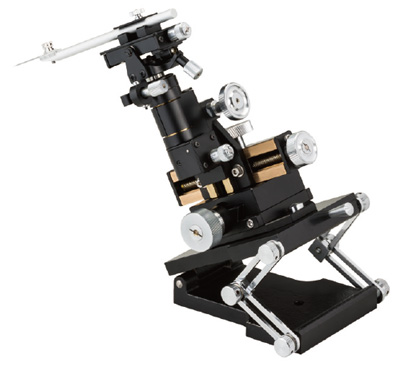

The MP-2 micromanipulator is the enhanced model of the Narishige's first universal "Peteruch type" manipulator, equipped with the stable fine Y-axis substage. This model features coarse and fine movement in X and Z axis respectively. Pivot and tilt functions are also incorporated. The easy-to-use tilting stand with folding type support allows manipulation at different angles. This model is a long-established versatile micromanipulator featuring three-dimensional fine movement

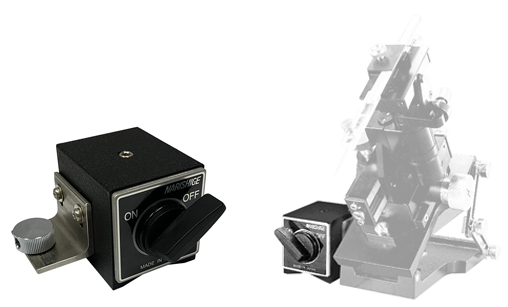

* GJ-10 magnetic stand (sold separately) can be attached to the tilting stand

Option

If a more stable setup is required by tilting the MP-2, it can be fixed using the separately sold iron plate IP and magnetic stand GJ-10

Set for In Vivo recording experiments

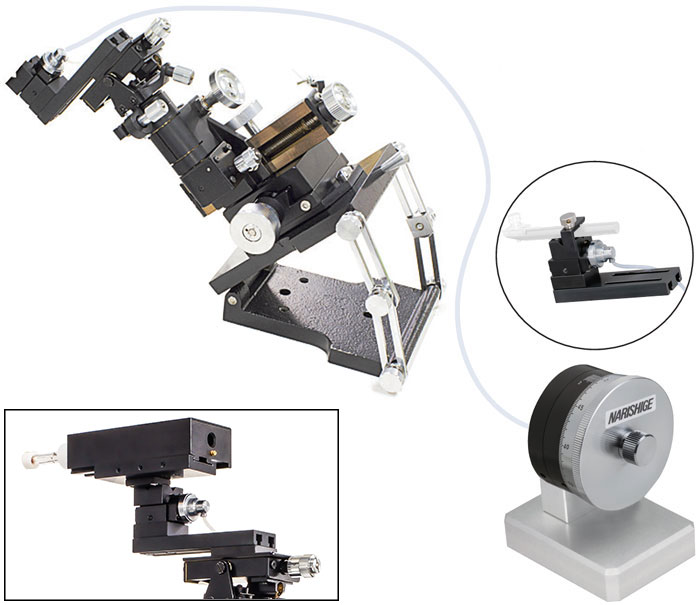

By connecting the separately sold P-11 to the included holder unit, the one-axis water hydraulic micromanipulator MHW-4-1 (precision: 1 µm, 250 µm per rotation) can be attached. This allows vibration-free fine-drive control at the same angle as the electrode, and by rotating the control knob located away from the drive unit, it can be easily operated with fingertips. Ideal for tasks under a stereomicroscope, such as in vivo recording experiments

Specification

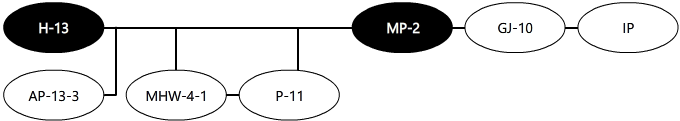

System Diagram
