Note that the comport Reload button allows user to reload the comport list if the device is connected to computer after the software has been started.

Step 3: On the device screen, browse to the group data to upload and then press Print button on the screen

The data will be uploaded to the software screen

Step 4: Export data to CSV file
Click button on the software screen, a file chooser appears for user to save the data with CSV data format. The default folder is C:appTailFlickTestbinuser_data

Documentation

Apparatus and Equipment

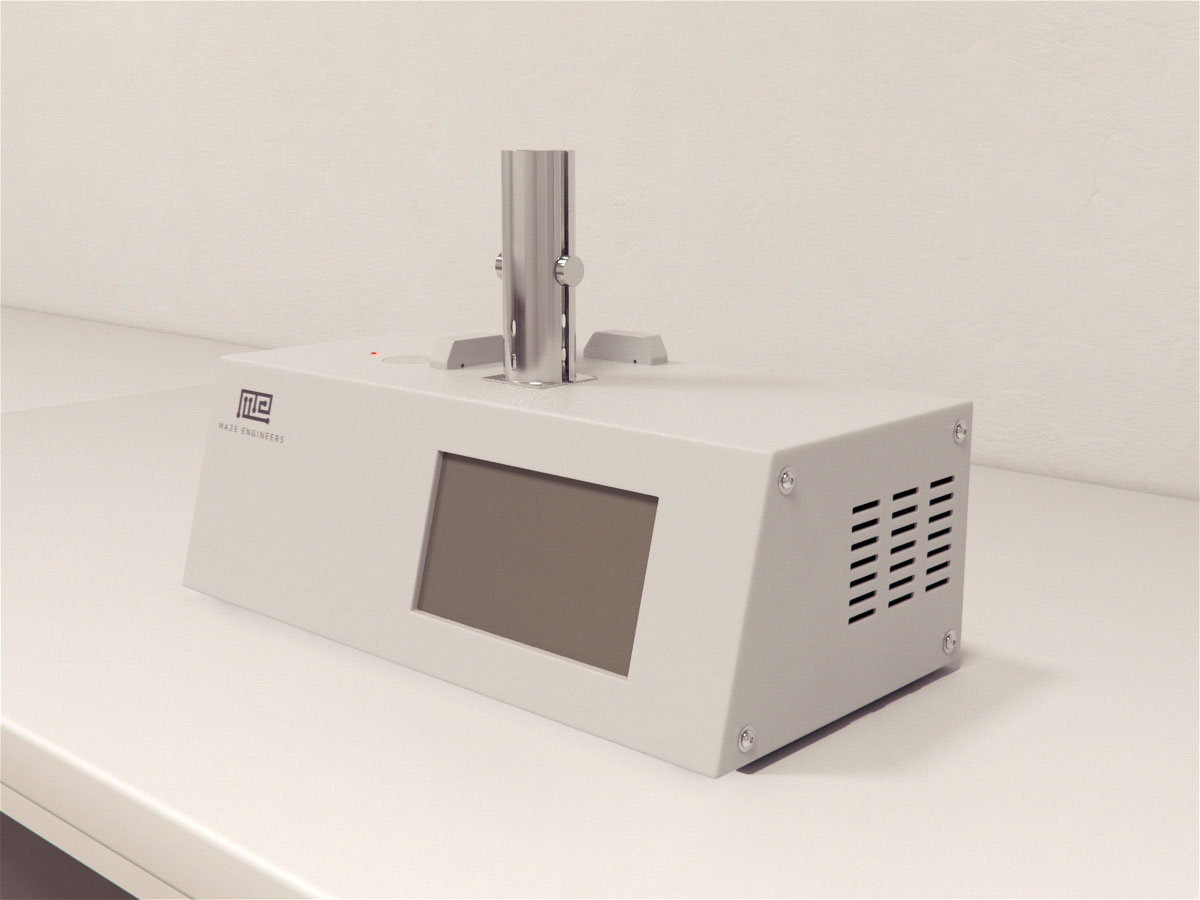

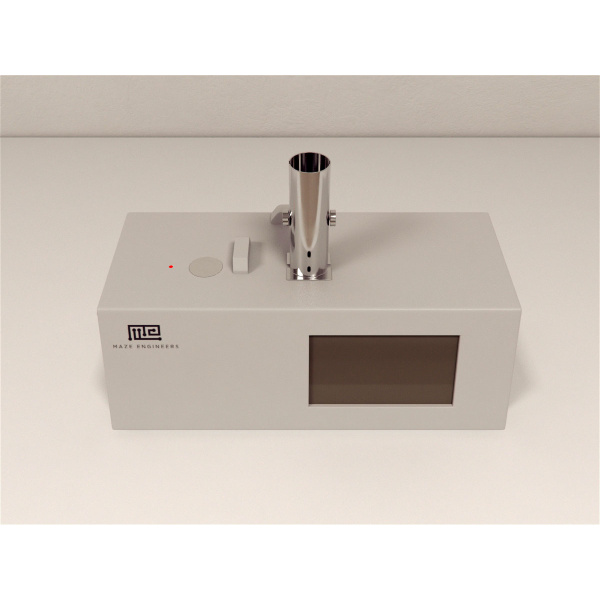

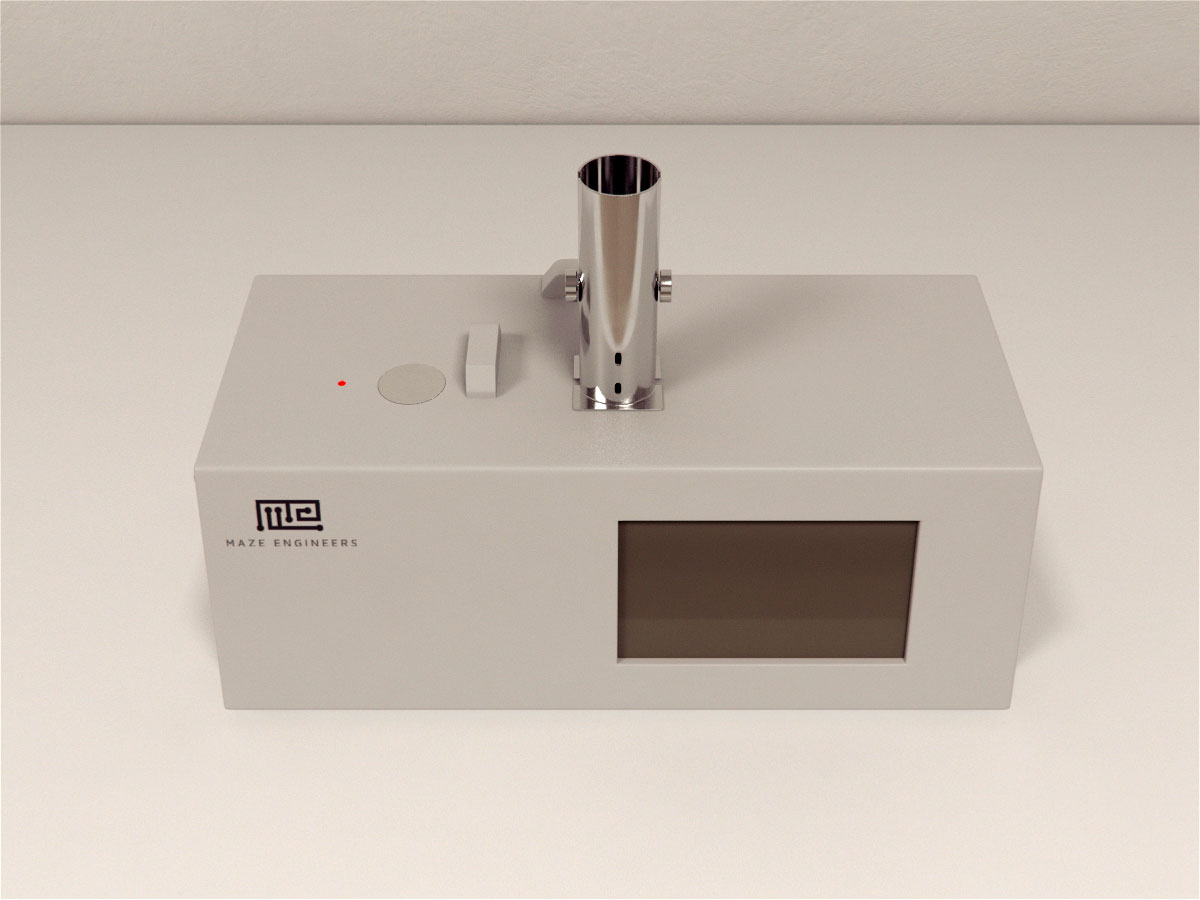

For the water-immersion variant, no special apparatus is required. For this Tail Flick test variation, the water bath is to be maintained at a constant temperature throughout the testing process. On the other hand, when using a direct heat stimulus, the apparatus consists of an analgesia meter. The composition of the apparatus includes a restraining tube that comfortably limits the subject while allowing experimentation on its tail, a radiant heat source that provides focused heat stimulus, and a timer

Training Protocol

Before beginning the experiments, the apparatus must be thoroughly cleaned. The performance can be recorded and observed using a tracking and recording system such as the Noldus EthoVision XT and ANY-Maze

Habituation

Gently place the subject within its restraining compartment and allow it sufficient time to acclimatize to the holding chamber. Repeat the process as necessary to ensure the subject remains calm during the actual trial

Training Trial

Place the subject in its restraining compartment and allow it 15 to 20 minutes to acclimate. To increase heat absorption, the part of the subject’s tail to be tested can be painted black. Place the subject’s tail directly under the heat source. Setting the desired intensity, start the timer and the light at the same time. Observe the subject for pain-elicited behaviors until the cut-off time (usually 20 to 35 seconds) for experiment has been reached. Repeat trials as necessary with at least 5-minute inter-trial interval

Evaluation of carvacrol treatment in Parkinson’s disease model

Haddadi et al. tested different dosages of carvacrol and their effects on pain response in adult male Wistar rats. 6-OHDA-lesioned rats were divided into 4 groups that were treated with 25 mg/kg, 50 mg/kg, 100 mg/kg and one that served as control group along with the sham-operated group. Each subject was tested in three 15-second trials wherein different parts of the tail were subjected to the heat stimulus. In comparison to the sham group, the lesioned group showed a significant decrease in tail flick latency. However, no significant effect of carvacrol administration could be observed on the tail flick latency

Evaluation of analgesic effects of nefopam and acetaminophen

Li et al. divided rats into 9 groups that were administered (i.p.) with 0.9% normal saline, “n” (2.5 and 5 mg/kg), “a” (42, 84 and 168 mg/kg), or combinations of “n” and “a” (1.25 N + 21 A, 2.5 N + 42 A, 5.0 N +84 A mg/kg; n=9,9 and 8) prior to the tail flick test. The Tail flick latencies were observed at five 15-minute intervals in a 30-second trial. The results showed a dose-dependent effect of the drugs on the tail flick latencies. Combination of the two drugs showed a greater antinociceptive effect than the corresponding nefopam concentration alone

Investigation of the effect of high-fat diet on nociception

Nealon et al. used experimentally naïve adult male and female C57BL/6N mice and divided them into two diet groups. One group was maintained on a high-fat, energy-dense, while the other group was maintained on standard chow for 15-weeks before the testing and drug administration. The subjects were treated with 0 (saline), 1, 3, 10, and 30 mg/kg “m”and tested for 10 seconds in the tail flick test. A dose-dependent increase in tail withdrawal latencies was observed. A difference in the magnitude of responses was observed between the two sexes, with females on either diet showing less sensitivity to effects of “m”

Data Analysis

The duration to withdraw tail when subjected to a radiant heat stimulus is measured in the Tail Flick test. The withdrawal latencies can be measured for different parts of the tail. During the observation, it is important to ensure that observed behavior is a reflex behavior and not a voluntary one. In case of an ambiguous behavior is observed, repeat the experiment and record the correct withdrawal latency

Strengths & Limitations

Strength

The Tail Flick test evaluates thermal nociceptive responses of the subject. In comparison with other tests, such as the Hot Plate test and the Hargreaves test, the Tail Flick neither subjects the animal to a heated open-field nor focuses the stimulus on its plantar surface. The withdrawal latencies can be observed by directing the heat stimulus to different parts of the subject’s tail. The Tail Flick test is simple and easy to perform and comes in two variations to suit the budget of the investigation

Limitations

In spinally transacted subjects, the tail flick response may be a spinal reflex rather than pain response (Irwin et al., 1951). Thus, consideration of the subject’s motor function (Chapman et al., 1985) is vital in achieving accurate results. The observer should be able to differentiate voluntary movement from pain reflex behaviors. Since Tail Flick test requires restraining, it is essential that the subjects are well accustomed to that process. Restraining may also cause anxiety-related behaviors. The cut-off time should not exceed 30 to 35 seconds to avoid unnecessary harm to the subject. It is important to minimize any external stimulus in the test arena to reduce their impact on the subject’s performance. Handling and consistency of the surgical process can also potentially influence tail withdrawal responses. The tail flick test may not be successful in distinguishing between opioid agonists and mixed agonist-antagonists. However, this can be overcome by using a cold-water Tail Flick test (Pizziketti et al., 1985)

Summary and Key Points

• Tail Flick test was first described by D’Amour and Smith in the year 1941
• Tail Flick test is similar in concept to the Hargreaves test. The heat stimulus is directed on the part of the subject’s tail rather than the plantar surface
• Tail Flick test requires restraining of the subject
• Tail Flick test can be performed either using an analgesic meter or using a water bath
• Painting the portion of the tail, to be tested, black allows greater absorption of the heat
• Spinally transacted subjects may show spinal reflex behavior rather than that induced by pain
• Subject’s motor functionality can also impact withdrawal responses

References

Chapman CR, Casey KL, Dubner R, Foley KM, Gracely RH, Reading AE (1985). Pain measurement: an overview. Pain. 22(1):1-31

D’Amour F. E., Smith D. L. (1941). A method for determining loss of pain sensation. J. Pharmacol. Exp. Ther. 72, 74–79

Deuis JR, Dvorakova LS, Vetter I (2017). Methods Used to Evaluate Pain Behaviors in Rodents. Front Mol Neurosci. 10:284. doi: 10.3389/fnmol.2017.00284

Haddadi H, Rajaei Z, Alaei H, Shahidani S (2018). Chronic treatment with carvacrol improves passive avoidance memory in a rat model of Parkinson’s disease. Arq Neuropsiquiatr. 76(2):71-77. doi: 10.1590/0004-282X20170193

Irwin S, Houde R.W, Bennett D.R, Hendershot L.C, Seevers M.H (1951). The effects of “m”e and “m”on some reflex responses of spinal animals to nociceptive stimulation. J Pharmacol Exp Ther. 101(2):132-43

Li Q, Zhuang Q, Gu Y, Dai C, Gao X, Wang X, Wen H, Li X, Zhang Y (2018). Enhanced analgesic effects of “n” in combination with “a” in rodents. Biomed Rep. 2018 Feb;8(2):176-183. doi: 10.3892/br.2017.1032

Nealon CM, Patel C, Worley BL, Henderson-Redmond AN, Morgan DJ, Czyzyk TA (2018). Alterations in nociception and “m” antinociception in mice fed a high-fat diet. Brain Res Bull. 138:64-72. doi: 10.1016/j.brainresbull.2017.06.019

Pizziketti RJ, Pressman NS, Geller EB, Cowan A, Adler MW (December 1985). “Rat cold water tail-flick: a novel analgesic test that distinguishes “o” agonists from mixed agonist-antagonists“. Eur. J. Pharmacol. 119 (1–2): 23–9. doi:10.1016/0014-2999(85)90317-6
