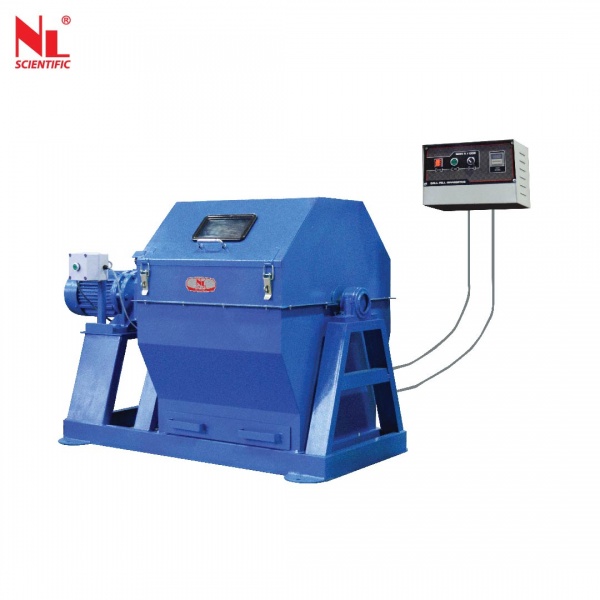

Ball Mill Apparatus NL 3014 X / 002

Ball Mill Apparatus NL 3014 X / 002

Materials Grinding

A cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw material & etc. The drum rotate around a horizontal axis.

Technical Specifications:

Model Number	NL 3014 X / 002
Drum Capacity	100 kg
Drum Rotation Speed	48 ~ 57 rpm
Particle Size	< 7 mm
Particle Load	5 kg
Grinding Period	30 min/each cycle
Dimension (mm)	1430(L) x 750(W) x 960(H)
Approx. Weight	235 kg
Power	380~415 V, 3 Ph, 2.2 kW, 5 A, 50/60 Hz
