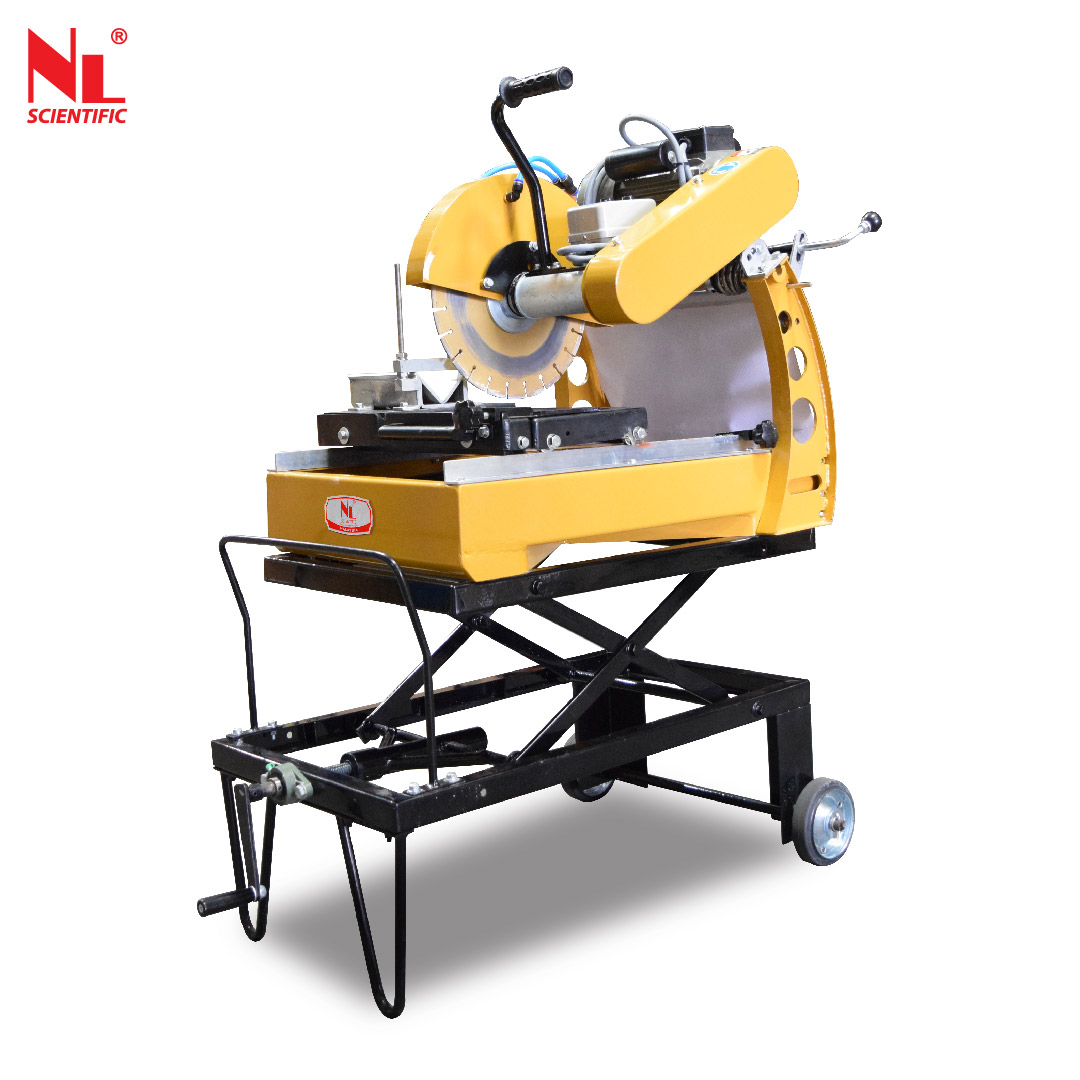

Portable Specimen Cutting Machine NL 4018 X / 002

Portable Specimen Cutting Machine NL 4018 X / 002

Sample Preparation for the Compression Test

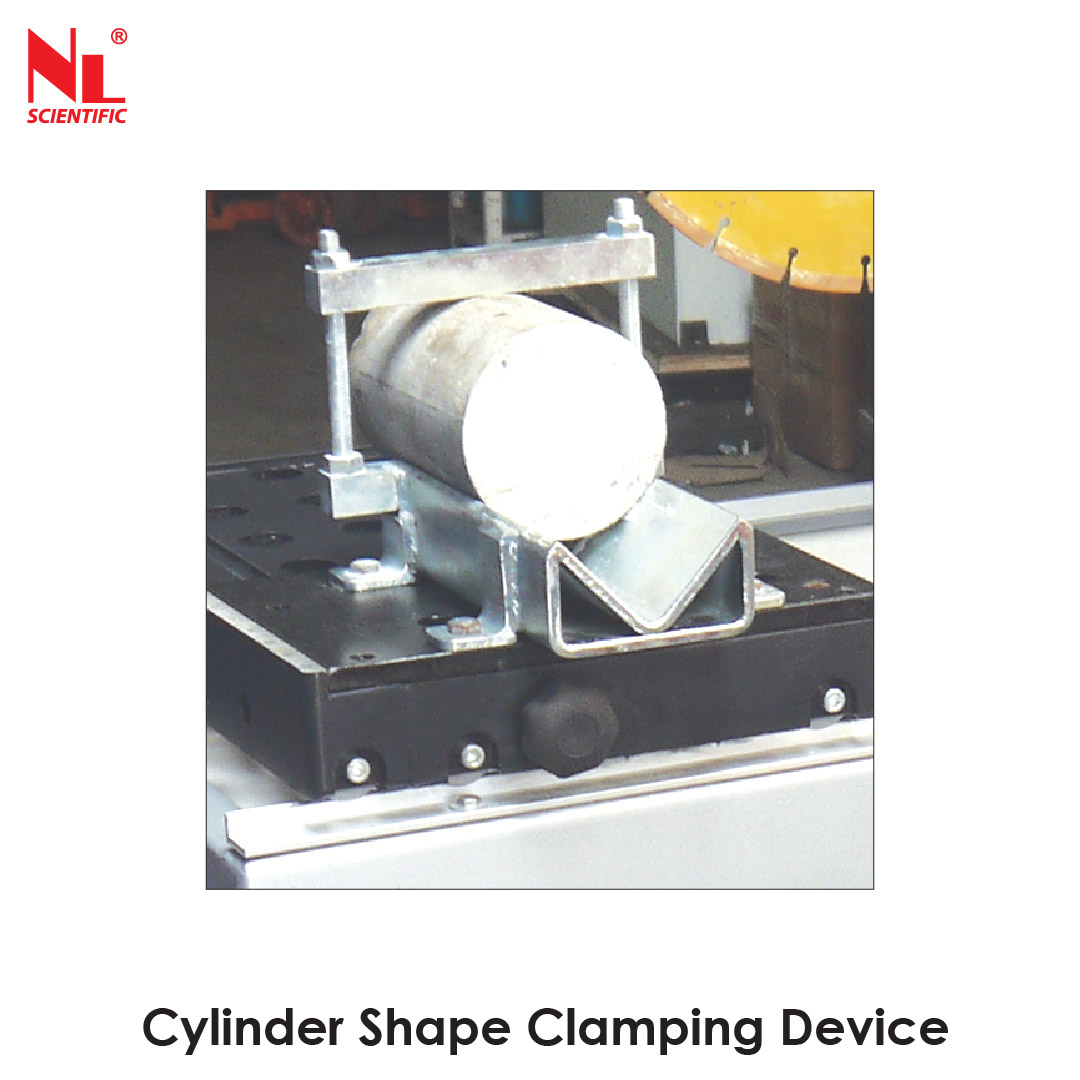

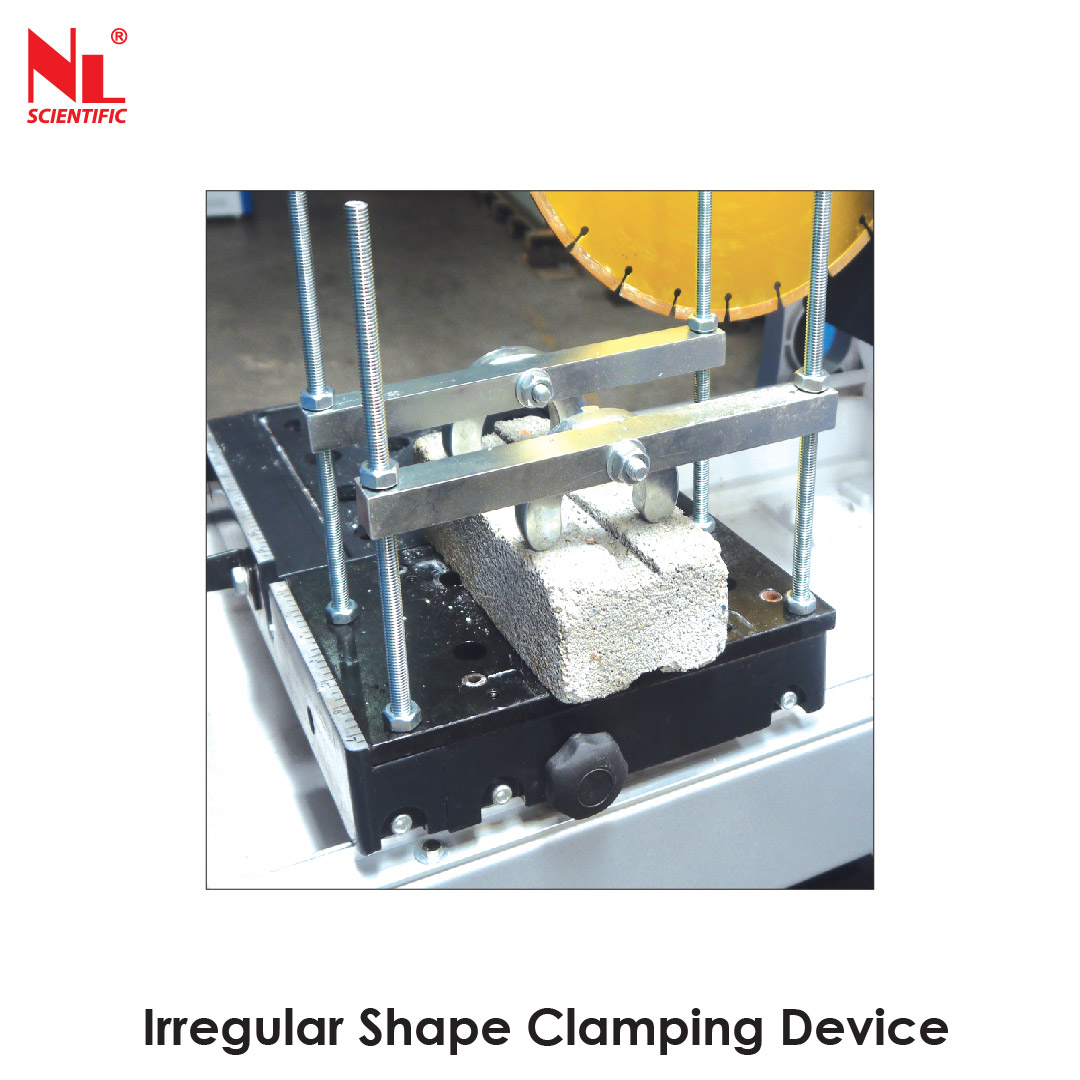

This unit machine has been specially developed to cut rock and core samples. It comes together with special design solid clamping device to allow all kind of irregular specimens to be held firmly position during the cutting operation

Technical Specifications:

Model Number	NL 4018 X / 002
Blade Diameter	14” (350 mm)
Max. Cutting Height	100 mm
Table Size	470 (L) x 267 (W)
Product Dimension (mm)	1020 (L) x 660 (W) x 1350 (H)
Packing Dimension (mm)	1120 (L) x 760 (W) x 1550 (H)
Approx. Product Weight	62 kg
Approx. Packing Weight	83 kg
Power	220 V, 2 Hp, 50 / 60 Hz, 1 ph
