nl3037x-06

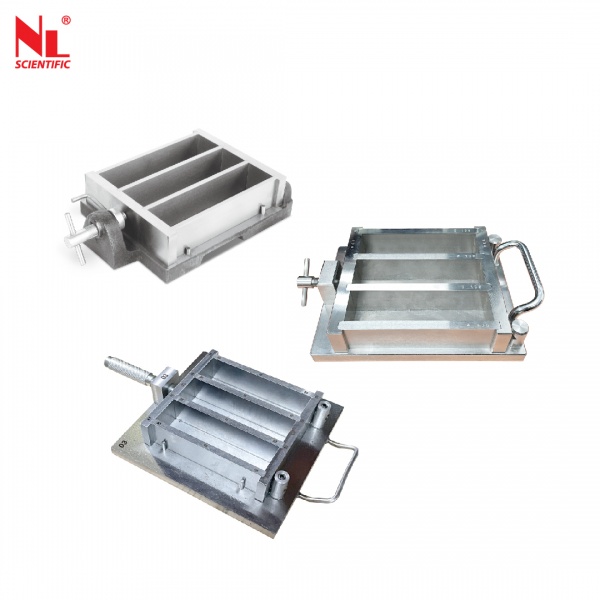

Three Gang Mould For Prisms NL 3037 X

Standard: EN 196-1

Preparation of Mortar Prisms

These three gang moulds are used to cast mortar prism specimens for flexural and compression tests, with dimensions as per standard requirement

Made from special alloy steel with a minimum surface hardness of HV200 and flat surfaces ensure reliable test result

Technical Specifications:

Model Number    NL 3006 X / 001 - A 001
 Material  Carbon Steel & Cast Iron
 Type of Prisms (mm)   40 x 40 x 160
 Dimension (mm)  270 (L) x 167 (W) x 60 (H)
 Approx. Weight  6.5 kg



Technical Specifications:

Model Number    NL 3037 X / 003
 Standard  EN196-1,EN ISO 679,ASTM C348
 Material  Carbon Steel
 Type of Prisms (mm)   40.1 x 40 x 160
 Dimension (mm)  243 (L) x 175 (W) x 57 (H)
 Hardness   Over 200 HV
 Approx. Weight  9.5 kg

Remarks : Each parts are with engraved number

Technical Specifications:

Model Number    NL 3037 X / 004
 Material  Carbon Steel
 Type of Prisms (mm)   40 x 40 x 160
 Dimension (mm)  350 (L) x 230 (W) x 55 (H)
 Hardness   Over 200 HV
 Approx. Weight  10.9 kg
Get a QuoteGet a Quote
